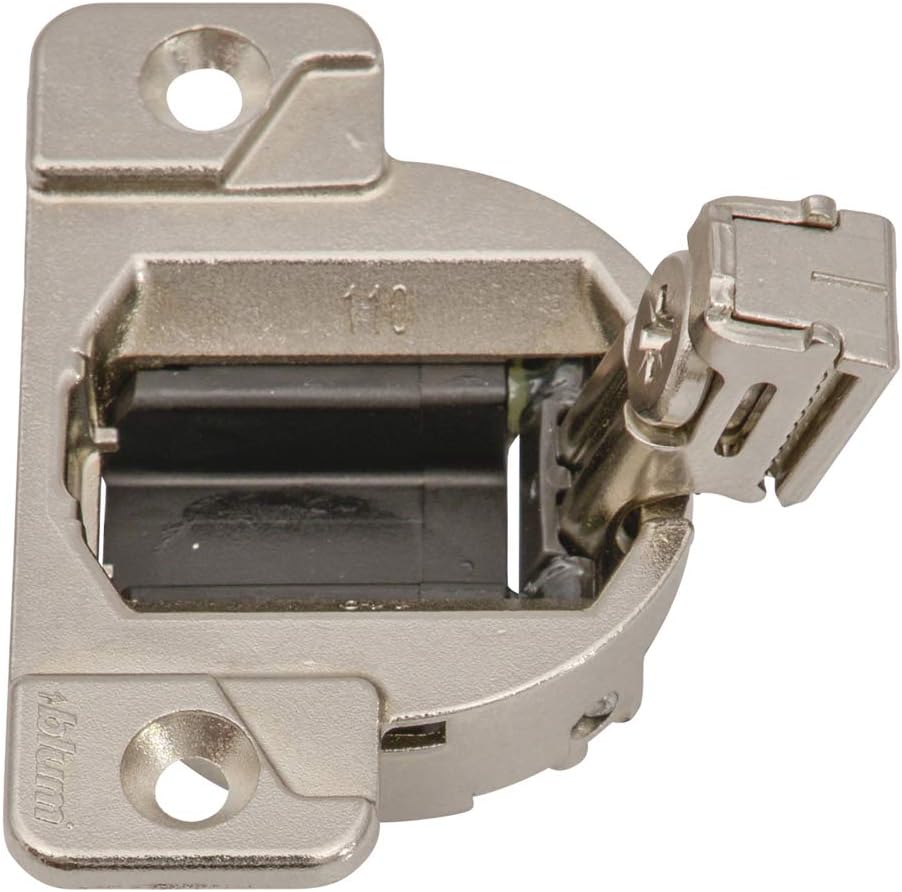

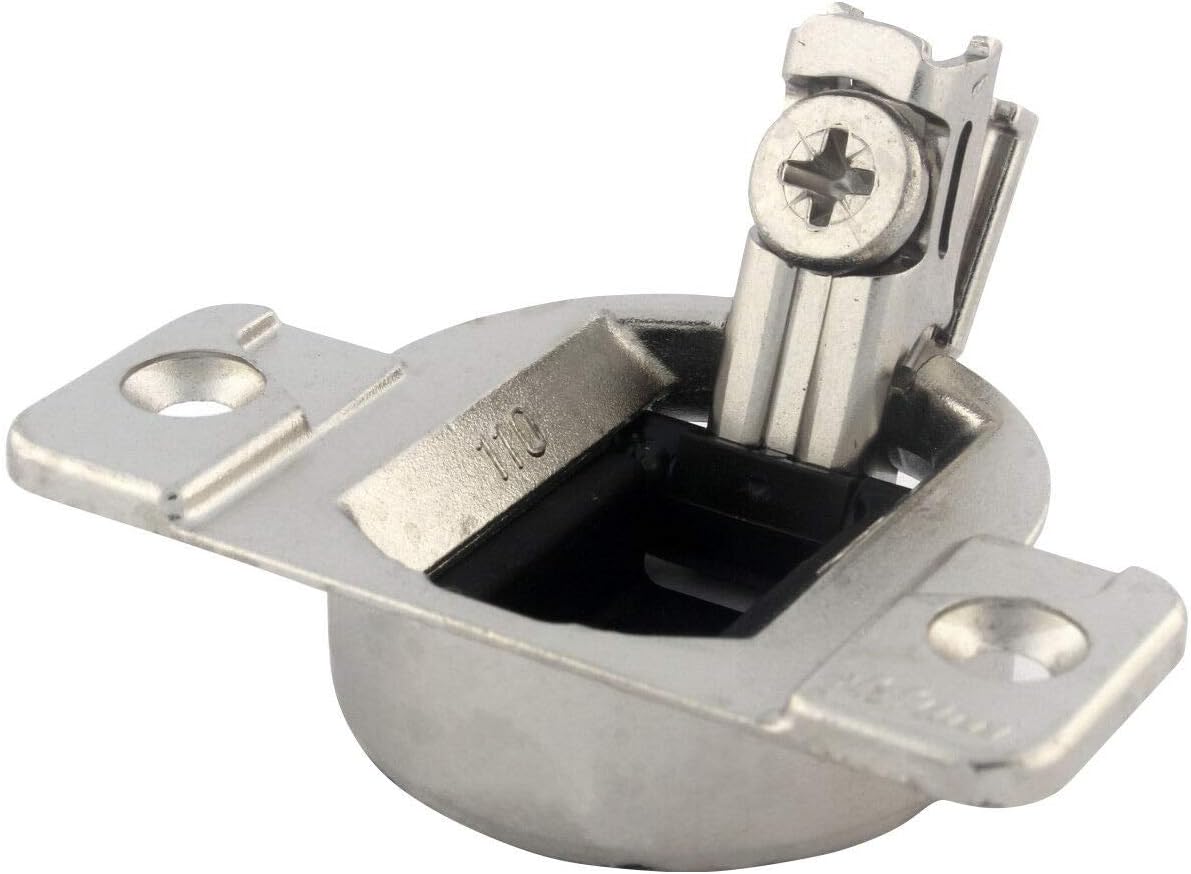

Blum 33.3600 110 Degree Compact 33 Hinge Cup with 1 1/2 Overlay mounting Plate (Part# 130.1150.02) Pack of 2 Sets
Product details
| Management number | 208218498 | Release Date | 2026/03/22 | List Price | $36.00 | Model Number | 208218498 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
ReplacementsWhen replacing worn out or broken Blum hinges, it is a good idea to replace all the hinges on your door at the same time. Prior versions of this hinge were made to open to 120 degrees. The 120-degree hinge can be replaced with this new 110-degree version. It is not advisable to mix 120-degree hinges with the new 110-degree hinge. You can use this new model hinge to replace your "old" style Blum Compact 33 hinge. The old style and the new style are functionally the same even though they look like different hinges.The only difference is in the old style had its screw holes located closer to the pivot point of the hinge. When replacing the Old Style with the New Style, you will have to re-drill the small wood screw holes. The new screw hole location will not interfere with the old screw hole location.Specifications: 110 degree opening angleTwo-piece assemblyEdge or face mount1/2" Cup depth+/- 9/64" height adjustment+/- 1/8" side adjustableOverlay: ½Closing Type: Self-ClosingFixing Type: Screw-On Boring Pattern: 45mmCup Depth: 13mmCup Diameter: 35mmIncluding:Blum Hinge(s) 33.3600, Blum Plate(s) 130.1150.02 with 1 1/2 OverlaySet of Dexter Group screwsMade in:Hinge made in: AustriaDexter Group screws are made in USA Blum, Inc. is a #1 leading manufacturer of functional hardware for the kitchen cabinet and commercial casework industries specializing in lift systems, concealed hinges and drawer runner systems.TrademarksBlum and the Blum Logo are trademarks of Blum Inc.Dexter Group and the Dexter Group Logo are trademarks of Dexter group corp
- 110 degree opening angle. Closing Type: Self-Closing. Comes with 1 1/2 Overlay Hinge mounting plate
- 1/2" Cup depth. Fixing Type: Screw-On. Cup Diameter: 35mm
- Screw-on installation. Boring Pattern: 45mm
- Zinc die-cast hinge and mounting plates. Cup Depth: 13mm
- Including: Blum Hinge(s) 33.3600. 1 1/2 (Part# 130.1150.02) Mounting Plate(s) Set of Dexter Group Branded screws
| Size | 1 1/2 |
|---|---|
| Color | Nickel-plated |
| Style | 33.3600, 130.1150.02 |
| Finish | Zinc die-cast |
| Material | Zinc |
| Head Style | Philips |
| Item Weight | 5 ounces |
| Part Number | 33.3600 and 130.1150.02 |
| Manufacturer | Blum |
| Mounting Type | Face Mount |
| Number Of Holes | 4 |
| Number Of Pieces | 2 |
| Item model number | 33.3600, 130.1150.02 |
| Batteries Included | No |
| Batteries Required | No |
| Package Dimensions | 8.94 x 5.83 x 2.83 inches |
| Included Components | Blum Compact 33 Hinge(s) (Model 33.3600), Blum 1 1/2 (Part# 130.1150.02) Mounting Plate(s), Set Of Dexter Group Branded screws |
| Installation Method | Screw-In |
