S.M.S.L T2 MQA-CD Transport Hi-Res Digital Media Center Support 32Bit/768kHz DSD512

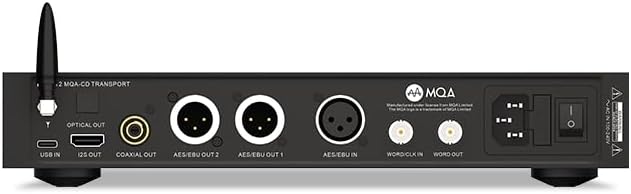

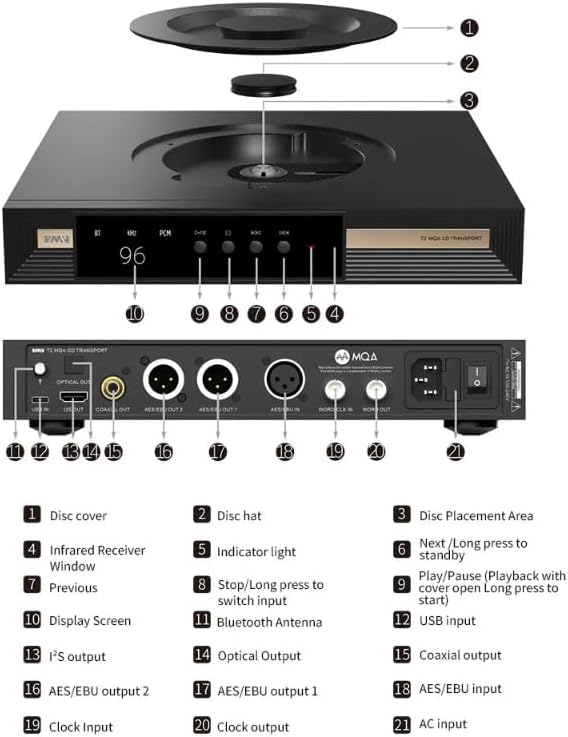

Technical Parameters: Inputs: USB/ Bluetooth/ CD player/ AES/ EBU Outputs: Coaxial/ Optical/ AES/ EBU x2/ I²S USB Transmission Method：USB 2.0 Asynchronous Transmission USB Compaticity：Windows7/8/8.1/10/11(driver required) Mac OSX 10.6 or higher, Android, Linux(no driver required) Maximum Output: I²S Output PCM 44.1~768kHz DSD 2.8224~22.5792MHz Sample Rate: Optical, Coaxial, AES/EBU PCM 24bit/192kHz MQA 8x expansion up to 384 kHz(SPDIF limited to 192 kHz) Bluetooth :PCM 24bit/96kHz(LDAC) Clock Interface: Frequency 44.1kHz or 10MHz Clock Input: Impedance 50Ω or 75Ω(optional) Waveform Square wave or sine wave Level Square wave TTL level, positive level>1 V rms Clock Output: Frequency 44.1 kHz or 48 kHz(automatically switches based on playback file) Impedance :75Ω Level :TTL level Bluetooth Specification: 5.1(supports SBC, AAC, aptX, aptX HD, LDAC) Power Consumption: 15W Standby Power Consumption: <0.5W Dimensions: 280x51x236mm(WxHxD) Weight: 3.52kg/7.76lbs

• 【Precision Access Servo System】 The servo system researched by S.M.S.L over two years with the characteristics of quick response, precise reading, etc., together with the self-developed vibration stopping dampers, has very good anti-vibration performance!
• 【The VMV T2 also has a unique open-cover playback mode】USB supports up to 32bit/768kHz, DSD512, MQA full decoding; AES/EBU input supports MQA full decoding: making it possible to use it as a stand-alone MQA decoder!
• 【Pursuit of Excellence】 Precise internal construction, perfect combination of mechanics and electronics! Combining the beauty of art with the technology of electronics.

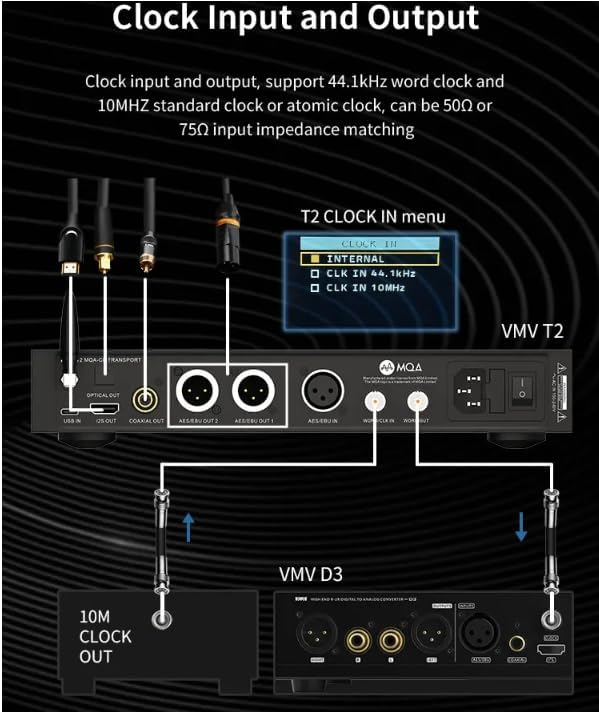

• 【Clock Input and Output】 Clock input and output, support 44.1kHz word clock and 10MHZ standard clock or atomic clock, can be 50Ω or 75Ω input impedance matching.
• 【Digital Signal Clock Re-lay】The use of internal or external precision clock signals, the input audio signal to achieve re-lay, significantly reducing digital distortion.
• 【Equipped with an All-Aluminum Remote and Full-Functionality Controls】Designed for convenience and ease of use, the VMV T2 comes with an all-aluminum remote control, providing robust performance and a premium feel.
